ABH450

ABH450 Horizontal Honing Machine

Precision Honing for Medium to High-Volume Production

Product Overview

Abhi Fine Products ABH450 Horizontal Honing Machine is specially designed to give consistent performance and precision bore finishing. Built with advanced servo-controlled components, auto gauging, and compact floor space, the ABH450 is one of the best and most reliable choices for manufacturers who want to enhance their products’ surface finish, precision, and productivity.

Technical Specifications

ParameterDetails
Honing Diameter RangeØ4 mm - Ø50 mm (Customizable)
Spindle SpeedUp to 2000 RPM
Spindle MotorServo Controlled
Stroker MotorServo Controlled
Stroker Feed RateUp to 20000 mm/min (component dependent)
Stroke LengthUp to 200 mm
Honing Length150 mm (Customizable)
Coolant FiltrationCartridge / Magnetic Separator / Paper Band
ABH 450

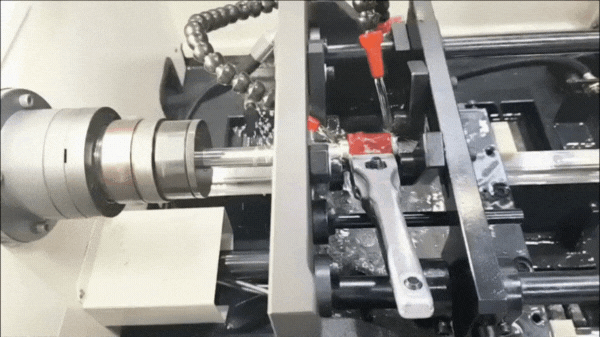

Real-Time Auto Gauging with HMI Display on the ABH 450

With the ABH 450 Horizontal Honing Machine, there's no guessing when it comes to bore accuracy. It comes with an auto-gauging setup that checks the bore size after each cycle-and keeps honing until it hits the exact specification. The system keeps adjusting itself throughout the process, so there’s no need to stop and manually check anything. It just keeps going. Operators can watch it all happen live on the HMI screen-from the honing action to the bore size readings. This kind of setup makes a big difference, especially when you're handling large batches in industries like automotive, aerospace, or hydraulics, where precision and repeatability really count.

ABH450 Horizontal Honing Machine

Product Features and Equipment

Abhi Fine Products honing machine with operator

Deliver fully
Customised solutions

Key Features

  • Constant expansion pressure keeps the honing pressure steady at all times for consistent and high-quality results.
  • The auto gauging system maintains the component’s output size within 2-3 µm, which means less manual inspection and more efficiency.
  • The servo-controlled mechanism makes the stroker, spindle, and expansion functions powered for enhanced accuracy.
  • Adjustable stroke length via HMI (Human-Machine Interface) makes it easy to customise the stroke length based on your application needs.
  • The compact footprint makes it easy to fit the honing machine even in the most tightly spaced floor.
  • With manual pulse generator (MPG) support, you can set up tools fast and easily.
  • Online support ensures you get expert help quickly to simplify maintenance.

Applications

  • The ABH450 is designed for handling high-precision honing processes across various industries like
  • Parts for automobile engines, such as cylinders, liners, and other critical parts that make engine performance better.
  • Hydraulic and pneumatic parts such as cylinders, pump casings, tubes, and valve bodies ensure that machines operate leak-free, last a long time, and perform consistently at a high level.
  • Aerospace precision parts like gear bushings, actuator sleeves, and fuel system components play an important role in delivering safe and reliable flight.
  • Defense and manufacturing applications like gun barrel sleeves, manifolds, compressor blocks, etc., play a crucial role in providing safe and reliable flight.

Why Should You Choose the ABH450 for Global Operations?

  • Our ABH450 is not just known for its accuracy across industries; it’s also built with the global users' needs in mind.
  • As an ISO 9001:2015 certified company, our products are designed to meet the international quality standards and manufacturing protocols in performance, reliability, and safety.
  • The machines are optimized for handling multiple languages, making work smoother.
  • Our ABH450 is designed to deliver high uptime, is low maintenance, and provides consistent precision no matter when it’s installed.
  • With compact footprint and simple integrability, it is easy to export them anywhere across the world and is a great choice for OEMs and global supply chains.

Want to see how ABH450 can contribute to your production’s efficiency?

  • Reach out to us for a quick quote or guide you through live demos. We are always available to help you quickly and efficiently across the world.
