Cylinder
Case History: E004

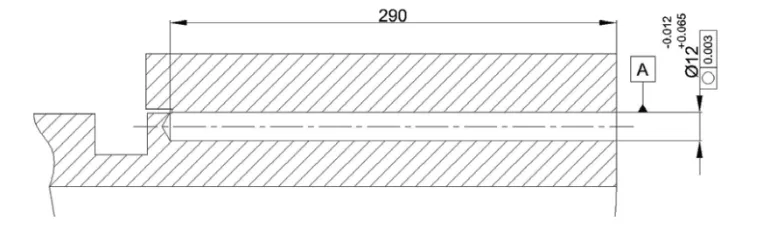

| Material | Super 13Chrome95 KSI | Hardness | 28 HRC | ||
| Bore Type | Blind Bore | Stock Removal | 0.12 mm | ||
| Diameter | Ø12 (-0.012 / +0.065) | Length | 290mm | ||
| Input | Rough | Ø11.915 | Output | Rough | Ø12.020 |
| Finish | Ø12.020 | Semi Finish | Ø12.030 | ||
| Lapping | Ø12.030 | Finish | Ø12.035 | ||
| BORE QUALITY | REQUIRED | ACHIEVED | ||
| Size | Ø12.012 / Ø12.065 | Ø12.035 | ||
| Roundness | 0.003 mm | 0.0015 mm | ||
| Surface Finish | 0.4 Ra | 0.1 Ra | ||
| Machine Type | ABH 2500 with Through Coolant |
| Coolant | ABHI HONING OIL (AB 150) |
| Production | 07 Nos /Hour |
