Hard to Find the Best Honing Machine for Engine Cylinders:We’ve got the solution

There are extreme conditions, such as high temperatures, rapid movement, and constant friction, that create an environment and impact performance. To escape from these circumstances, honing machines play a vital role in achieving a perfectly smooth, cross-hatched finish inside the cylinder bore.

The finish is so important

• Improved Oil Retention: The patterns of cross-hatch by honing machines hold the lubricating oil firmly and reduce the friction, resulting in smoother and longer-lasting performance.
• Enhanced Compression: the perfect sealing between the piston rings and cylinder wall, improving efficiency in engine power.
• Longer Engine Life: A precisely honed surface reduces stress on engine components, leading to fewer breakdowns and cost-effectiveness.
• The automotive engine's surface requires Ra 0.2-0.4 microns roughness that delivers a high-quality honing machine

Accuracy

In today’s world, engines require higher precision to fit parts together. Investing in a machine capable of maintaining micron-level accuracy, even with a 2- to 3-micron variation, will affect the performance.

Machine Type

Different types of engines require variants. The choice between horizontal honing machines, vertical honing machines, single-pass honing machines, or multi-pass honing machines significantly affects cycle time, precision, and efficiency.

Automation and Digital Controls

Advanced PLC & CNC controls, touch screens, and auto feed systems, rautomatic honing machines are embedded with reflecting efficiency and high precision.

Material Compatibility

There is no compromise in accuracy when working with cast iron, aluminium blocks, or composite materials.

Productivity

If you’re a mass manufacturer of engines, the cycle time per bore is a core element. Machines with multi-stone configurations or continuous honing capabilities speed up the process.

Select the right type of honing machine according to your needs:

Horizontal Honing Machines

To achieve stability and high-precision honing in heavy-duty engines horizontal honing machine performs efficiently by handling long and heavy workpieces.

Vertical Honing Machines

These vertical honing machines are preferred when shorter engine blocks are used or the space is limited. The company is known for its superior chip evacuation. And high-end vertical machines will perform with the same accuracy as horizontal machines but with a smaller footprint.

Single-Pass Honing Machine

A single-pass honing machine uses fixed-diameter abrasive sleeves that move all through the bore in just one stroke, which eliminates material properly and quickly. Tight bore tolerances with small variation bring speed and consistency.

Multi-Pass Honing Machine

Multi-pass honing machines remove material gradually in several strokes and achieve better control of size, geometry, and surface finish. These machines are ideal for highly engineered applications.

Spindle Speed and Power

For better control in handling tough or larger engine components, wisely using higher spindle is better choice and adequate torque. Higher spindle speeds are precise

Flexible tool Options

Choose machines that support different stone grits and abrasive materials (diamond, CBN, vitrified stones) to match varying bore sizes and material hardness.

Auto-gauging and process monitoring.

With the advanced machines, the process will stop automatically when the targeted dimension or size is met. Using this method, the tool can automatically adjust itself through the auto-gauging mechanism.

Coolant and Lubrication Systems

High heat during honing can change the shape of the workpiece. A coolant system maintains stability in temperature, and tool life is expanded.

Safety and Durability

To ensure the machine's durability and strength, and machine stops automatically by setting buttons are set, which saves time and costs

The best honing machine for engine cylinders is determined by evaluating surface quality. The best method for efficiency is the Abbott Firestone Curve, also known as the Bearing Area Curve (BAC), which specialises in improving engine performance.

Is the curve important?

The curve plots the percentage of material contact against the depth of the surface profile. In simple terms, it shows how much of the cylinder wall will support the piston rings under load.

• Load-Bearing Capacity: The lower portion of the curve indicates the ability to carry a load without deformation.
• Oil Retention: The nature of a well-balanced curve shows less friction with better lubrication, and the curve gives spaces for lubricating oil.
• Wear Resistance: the greater number of peaks will impact the formation of the oil film. And that is presented in the upper section of the curve.

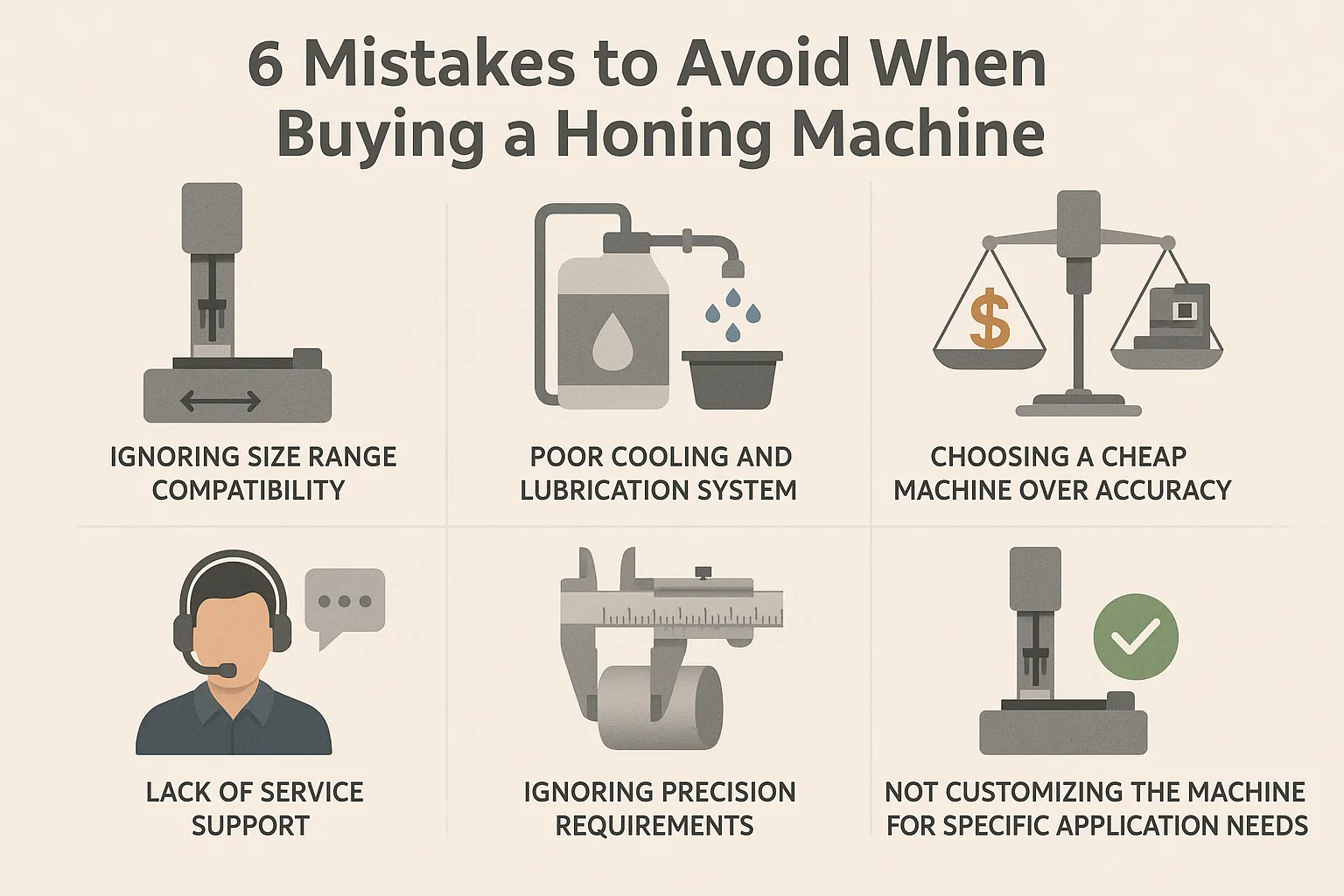

• Size Range Compatibility: checking the minimum and maximum bore diameter the machine supports is mandatory.
• Coolant and Lubrication Systems: Coolers support accuracy, so that needs to be checked, or else the tooling wears out.
• Compromising on Accuracy for Price: cheap machines last fewer years and do not meet the line, and repairing multiple times causes expenses.
• Consideration of Support: after sales, maintaining the CRM is mandatory, so getting a manufacturer with global-level service leads to better results in sales.
• Rejecting Customisation options can lead to production challenges because different production types have unique requirements. Customising honing machines allows flexibility in stroke lengths and automation.
