Through Coolant Honing Tool: The Modern Solution for High-Precision Machining

26 May, 2025

Why Honing Fixtures Are Key to Consistent Surface Quality

When manufacturers think of precision finishing,honing tools are always part of the conversation. But as demand for speed, accuracy, and performance increases across industries like automotive, aerospace, and hydraulics, traditional tools often fall short.

This is where the Through Coolant Honing Tool brings a significant upgrade to the process.

What Is a Honing Tool?

Before we explore the details, let's clarify the basics. A honing tool is a cutting instrument used to create an ultra-smooth surface finish and improve the accuracy of bore size and geometry. It removes very small amounts of material to perfect components like engine cylinders, fuel injector bores, and hydraulic valves.

There are many types of honing tools, but through coolant honing tools offer clear advantages in modern manufacturing environments.

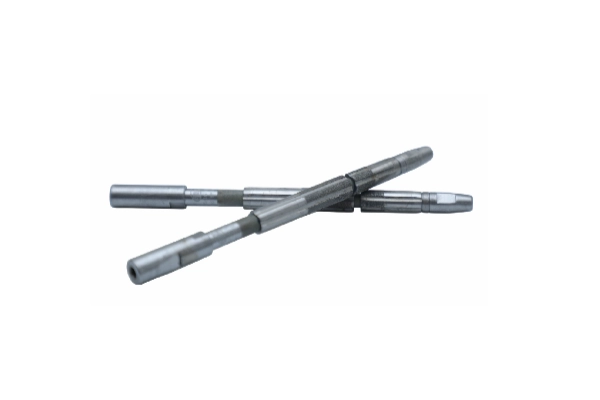

Single Pass Honing Tools

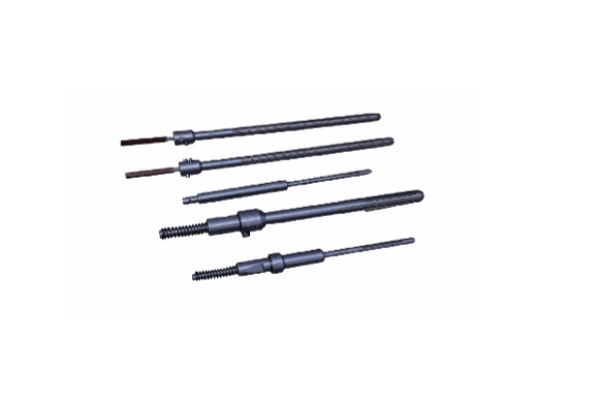

Expansion Honing Tools

What Is a Through Coolant Honing Tool?

A through coolant honing tool is a specially engineered tool that delivers coolant directly to the working zone via internal channels. This improves cooling, lubricates the abrasive surfaces, and flushes away debris-leading to faster, cleaner, and more accurate honing.

Key Features of Through Coolant Honing Tool:

Diameter Range: From 5mm to 130mm (customized as per requirement)
High Surface Finish: Ensures excellent bore quality and dimensional accuracy
Specially Designed for Blind Bore Applications: Ideal for complex and closed-end bores

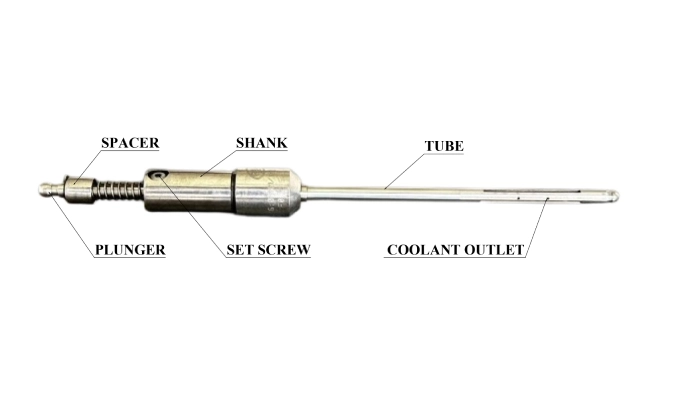

Through Coolant Honing Tool

Component	Function
Spacer	Maintains the correct distance between components for proper axial alignment and tool balance.
Plunger	Initiates the movement of the abrasive stones by pushing them outward during the honing process. Plays a key role in expansion and pressure application.
Set Screw	Secures internal components in place, ensuring stability and preventing disassembly during operation.
Shank	The holding part of the tool that fits into the machine spindle or tool holder. Transfers torque and coolant.
Tube	A hollow shaft that allows coolant to flow through the tool to the honing zone, keeping temperatures stable.
Coolant Outlet	Directs coolant precisely to the contact area between the abrasive stones and the bore surface. Helps in chip removal and lubrication.

Each of these components works together to ensure that coolant is effectively delivered to the abrasive zone, enhancing tool life, bore finish, and machining speed.

Key Benefits of Through Coolant Honing Tools

Superior Cooling

Coolant flows through the tool to the exact contact area, preventing overheating and increasing tool life.

Faster Cycle Times

High-pressure coolant allows for higher cutting speeds and quick chip evacuation, speeding up the process.

Better Surface Finish

The continuous cooling and lubrication create smoother finishes and more consistent bore sizes.

Improved Tool Longevity

Coolant reduces friction and wear, meaning fewer replacements and lower tool costs.

Clean Work Environment

Internal coolant flow keeps the bore clean, reducing the need for manual cleaning or reworking.

Major Industrial Applications

Automotive Industry

Fuel injector bores, engine blocks, cylinder liners, and gear housings.
Used to ensure uniform bore geometry, reducing friction and improving fuel efficiency.

Aerospace Industry

Hydraulic actuators, landing gear cylinders, and turbine sleeves.
Vital for parts that demand zero tolerance errors and aerospace-grade finishes.

Hydraulics & Pneumatics

Valve bodies, hydraulic cylinders, and manifolds.
Helps in achieving perfect roundness and smooth bore surfaces to prevent leakage and wear.

Heavy Machinery

Gearbox housings, drive shafts, and bearing sleeves.
Required for high-load mechanical systems where surface finish and alignment are crucial.

Oil & Gas

Drill collars, valve sleeves, and high-pressure pumps.
Supports operations under extreme pressure with corrosion-resistant and precision- machined bores.

Railways

Brake cylinder housings, shock absorbers, and engine block sleeves.
Ensures long-lasting and vibration-resistant performance.

Ready to Upgrade Your Honing Process?

If you're looking to improve machining efficiency, extend tool life, and deliver unmatched surface finishes, it's time to consider using through coolant honing tools for your operations.

Contact us today to learn more about our advanced honing solutions designed for global industries.
